IC SENSORI AD EFFETTO MAGNETIC

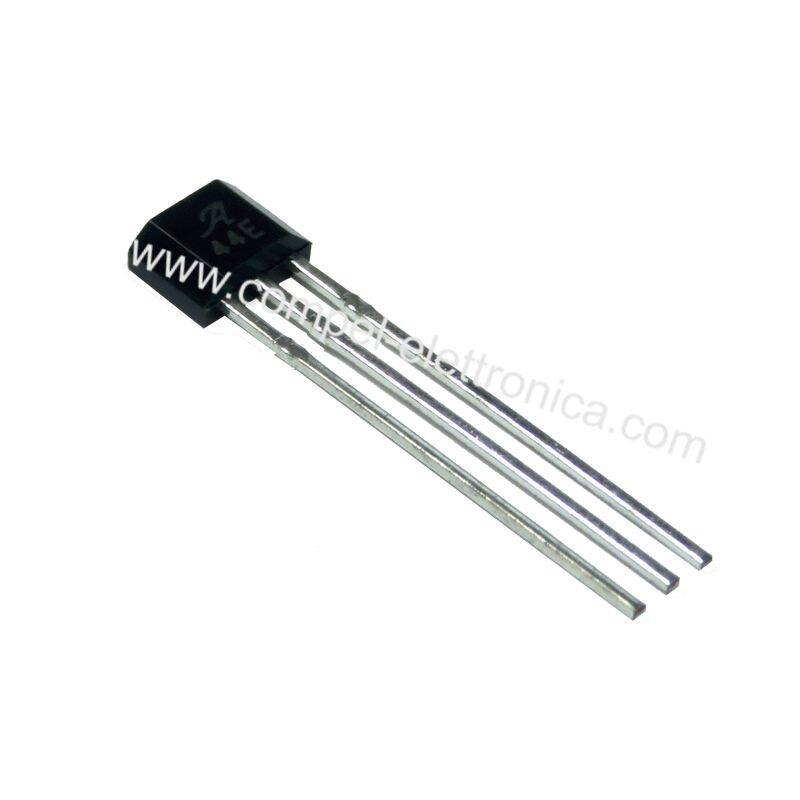

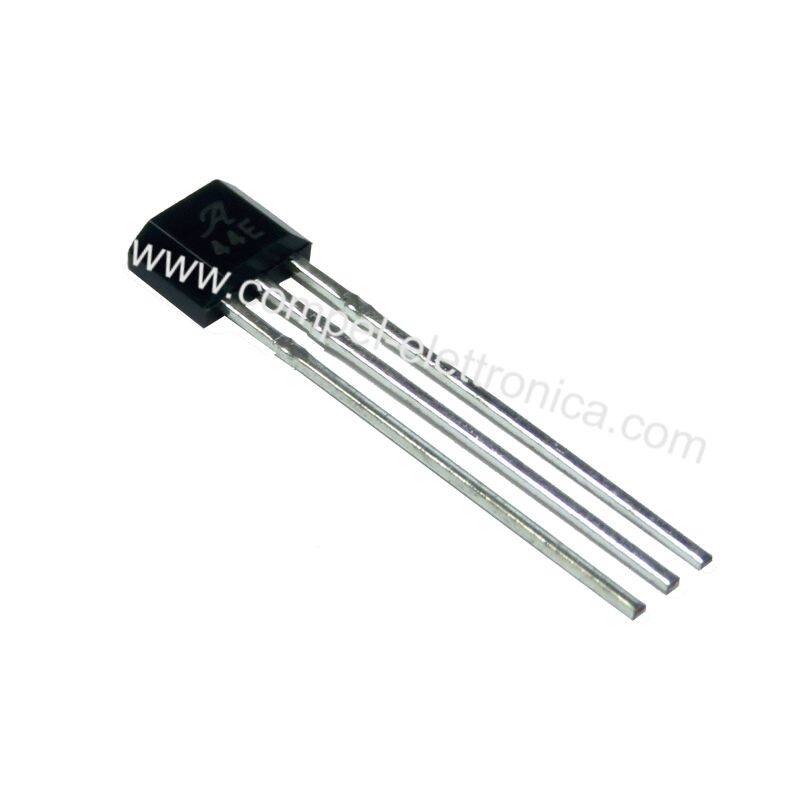

A 3144EUA HALL-EFFECT 4,5Vdc..24Vdc HIGH-TEMPER. TO-92 3 PIN
A 3144EUA HALL-EFFECT 4,5Vdc..24Vdc HIGH-TEMPER. TO-92 3 PIN
CODICE: A3144EUA
Prezzi Iva Inclusa
1 PZ
€ 1,4494
3 PZ
€ 1,0327
Scheda Tecnica
Articolo: 3144
Descrizione: TRANSISTOR SENSITIVE HALL-EFFECT SWITCHES FOR HIGH-TEMPERATURE OPERATION
Transistor a effetto di campo magnetico
Tensione di alimentazione: 4.5Vdc to 24Vdc
Corrente: 25mA
Contenitore: TO-92-3
Marking: U18
Articolo similare:
Applicazioni: Superior Temp. Stability for Automotive or Industrial Applications
4.5 V to 24 V Operation … Needs Only An Unregulated Supply
Open-Collector 25 mA Output … Compatible with Digital Logic
Reverse Battery Protection
Activate with Small, Commercially Available Permanent Magnets
Solid-State Reliability
Small Size
Resistant to Physical Stress
Produttore:
Nota informativa: I dati presenti in questa scheda sono solo indicativi.
Per informazioni piu precise consultare i dati del produttore.
These informations are indicative only, for more precise information look in the data producer.
Articolo: 3144
Descrizione: TRANSISTOR SENSITIVE HALL-EFFECT SWITCHES FOR HIGH-TEMPERATURE OPERATION
Transistor a effetto di campo magnetico
Tensione di alimentazione: 4.5Vdc to 24Vdc
Corrente: 25mA
Contenitore: TO-92-3
Marking: U18
Articolo similare:
Applicazioni: Superior Temp. Stability for Automotive or Industrial Applications
4.5 V to 24 V Operation … Needs Only An Unregulated Supply
Open-Collector 25 mA Output … Compatible with Digital Logic
Reverse Battery Protection
Activate with Small, Commercially Available Permanent Magnets
Solid-State Reliability
Small Size
Resistant to Physical Stress
Produttore:
Nota informativa: I dati presenti in questa scheda sono solo indicativi.
Per informazioni piu precise consultare i dati del produttore.
These informations are indicative only, for more precise information look in the data producer.
